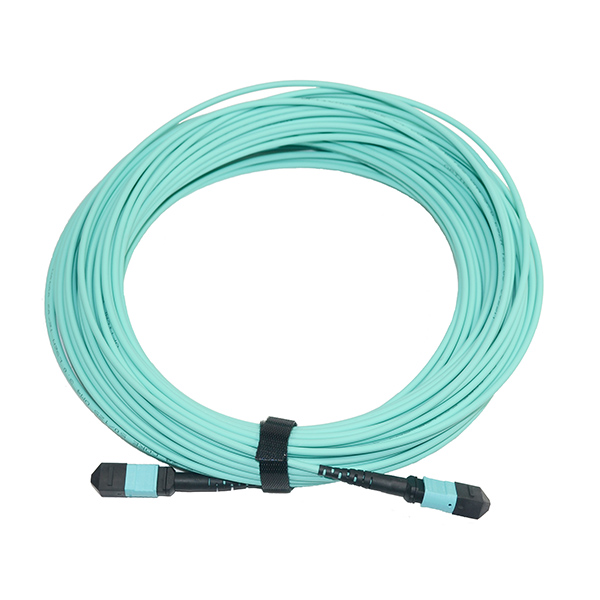

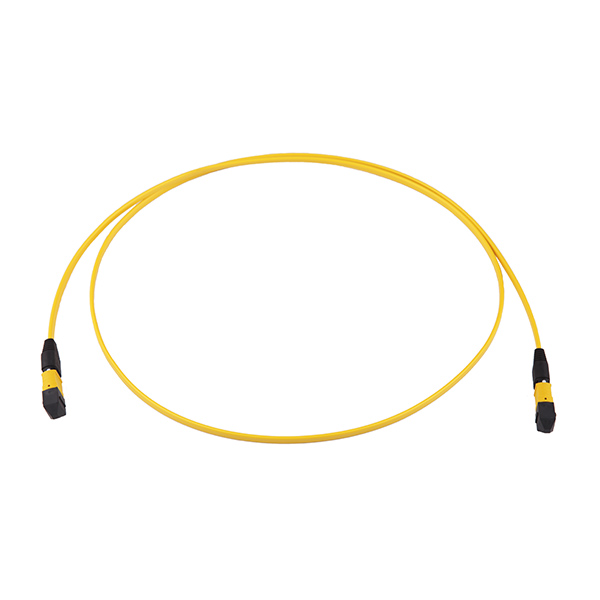

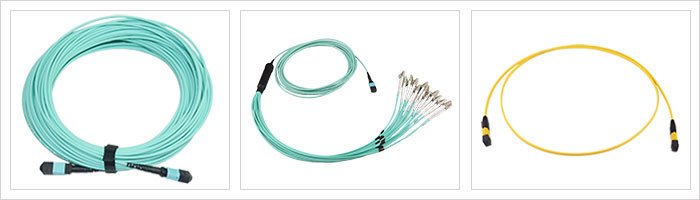

MPO/MTP Fiber Trunk Cable

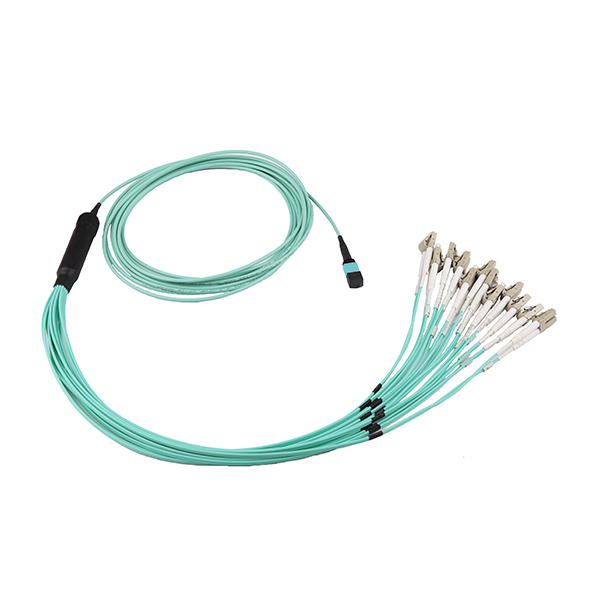

Hangalaxy's MPO/MTP Fiber Trunk Cable facilitates the rapid deployment of data centers and optical infrastructure environments. Across MDA, HDA and EDA interregional module boxes or fan-out optical cables, their efficient plug-and-play architecture greatly reduces the initial installation and daily maintenance costs.

Hangalaxy can provide customers with a variety of non-diverted multi-mode 10,000-mega MPO/MTP Fiber Trunk Cable fiber jumpers according to different configuration requirements. The 12-core fiber optic cable types are ribbon cable and 3.0 mm bundle cable or 2.0 mm Mini bundle cable.

 Customers can specify the connection type MPO or MTP, or they can freely choose the length and other configurations of multi-mode 10,000-mega MPO/MTP Fiber Trunk Cable fiber jumper. All products meet the requirements of Telcordia-GR-326, IEC and Rohs.

Enquiry

AdvantagePurposeProduct SpecificationScheme comparison

Hangalaxy's MPO/MTP Fiber Trunk Cable uses high-quality optical cables and MPO components, low insertion loss, high echo loss can fully meet the requirements of high-speed network.



Product characteristics


* Low insertion loss；

* Good interchangeability and pluggability；

* There are many kinds of MPO practices；

* High quality core insertion, PIN needle accurate alignment；

* Tecordia GR-326RCORE standard, meeting ROSH requirements；

* Drawings and MTP are available；

* Provide 12-144 core optical fiber connections；

* Using 12-core or 24-core MPO connectors, miniaturization minimizes faults and reduces wiring space；

* Smooth upgrade from 10G to 40G and 100G network transmission, and support delay index of 100G transmission；

* Multi-mode OM3, OM4, single-mode G652D, G657A2 and other optical fiber specifications can be selected according to different configuration requirements of users；

* A new type of optical cable with special structure of circular and small outer diameter is adopted to realize smaller bending radius of main optical cable, which makes ；storage and laying convenient and fast；

* Dust-proof, compression-resistant and tension-resistant protective sleeve at both ends can effectively protect optical cable and optical fiber connector from damage during transportation and installation.
