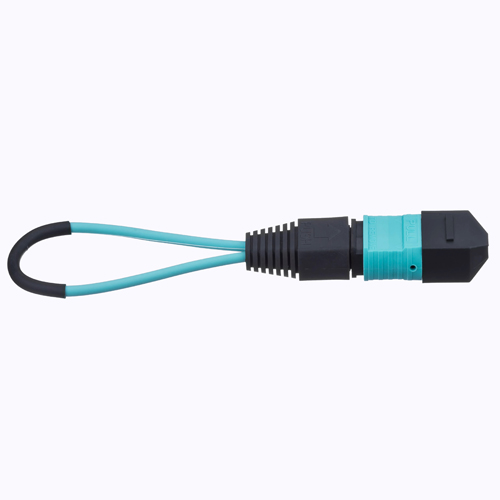

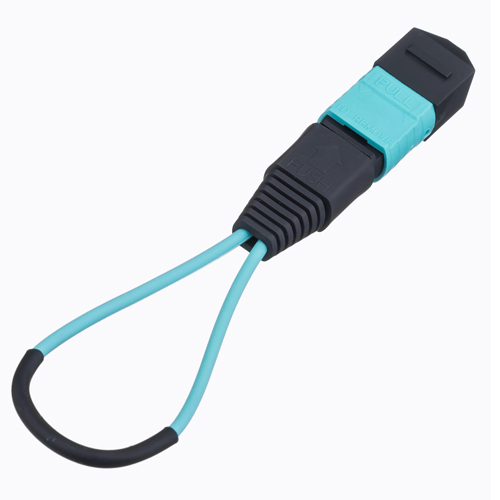

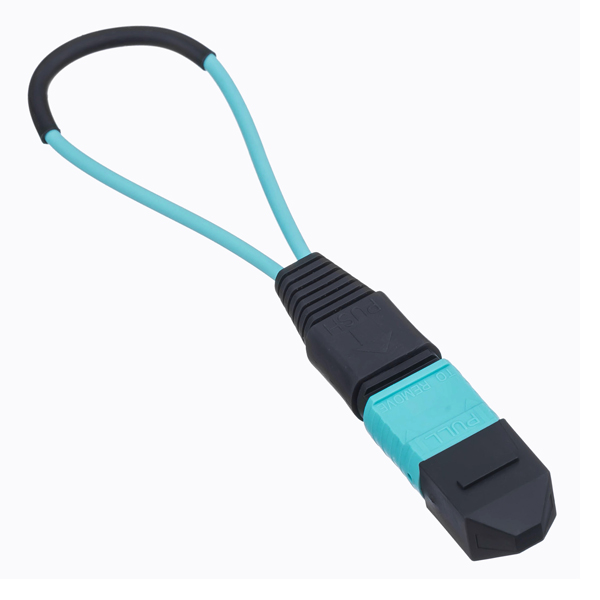

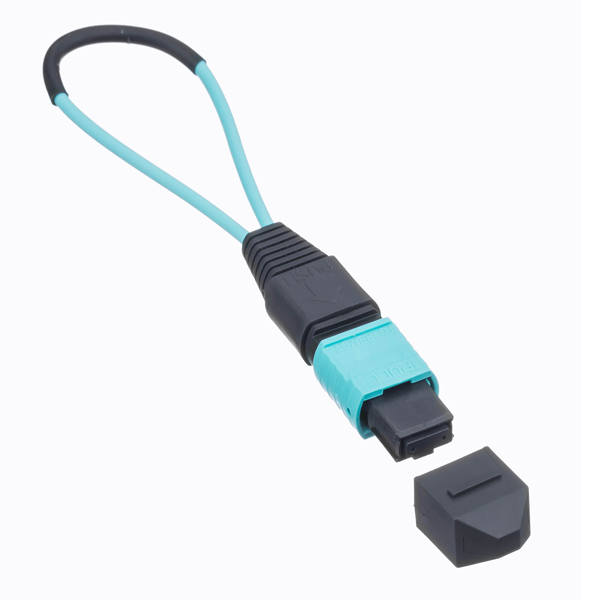

12 Cores MTP MPO OM3 Multimode Loopback

This Hangalaxy MTP®/MPO loopback is fit for testing MTP®/MPO network and system. It helps to test the transmitter capability and receiver sensitivity of network equipment. Suitable for MTP®/MPO 12-fiber interface in Quad SmallForm-actor Pluggable (QSFP) or 24-fiber interface in 100G CFP/CXP applications.
Enquiry

AdvantagePurposeProduct SpecificationScheme comparison

■ Keyed Characteristics

(1) The MTP/MPO Loopback in low insertion loss and high relaibilty;
(2) Suitable for 40G and 100G protocols testing;
(3) 12-Fiber or 24-Fiber Ferrule available;
(4) Complies with IEC-61754-7 and EIA/TIA-604-5;
(5) Small, folding, compact housing design;
(6) Streamlined, Ruggedized housing design for excellent stability and reliability;
(7) Allows side-by-side mounting in dense board applications;
(8) Protects the ribbon fibers when engaged repeatedly;
(9) Offers the ability to simulate network distances within the device;
(10) Provides a Loopback with pin out that is factory ready to mate to components with appropriate routing;
(11) Provides quick customer identification of device parameters for evaluation;
(12) Hang hole included, easy to carry.
